French Drain Installation Guide

Solve standing water, protect your foundation, and improve drainage with a properly installed French drain.

What Is a French Drain?

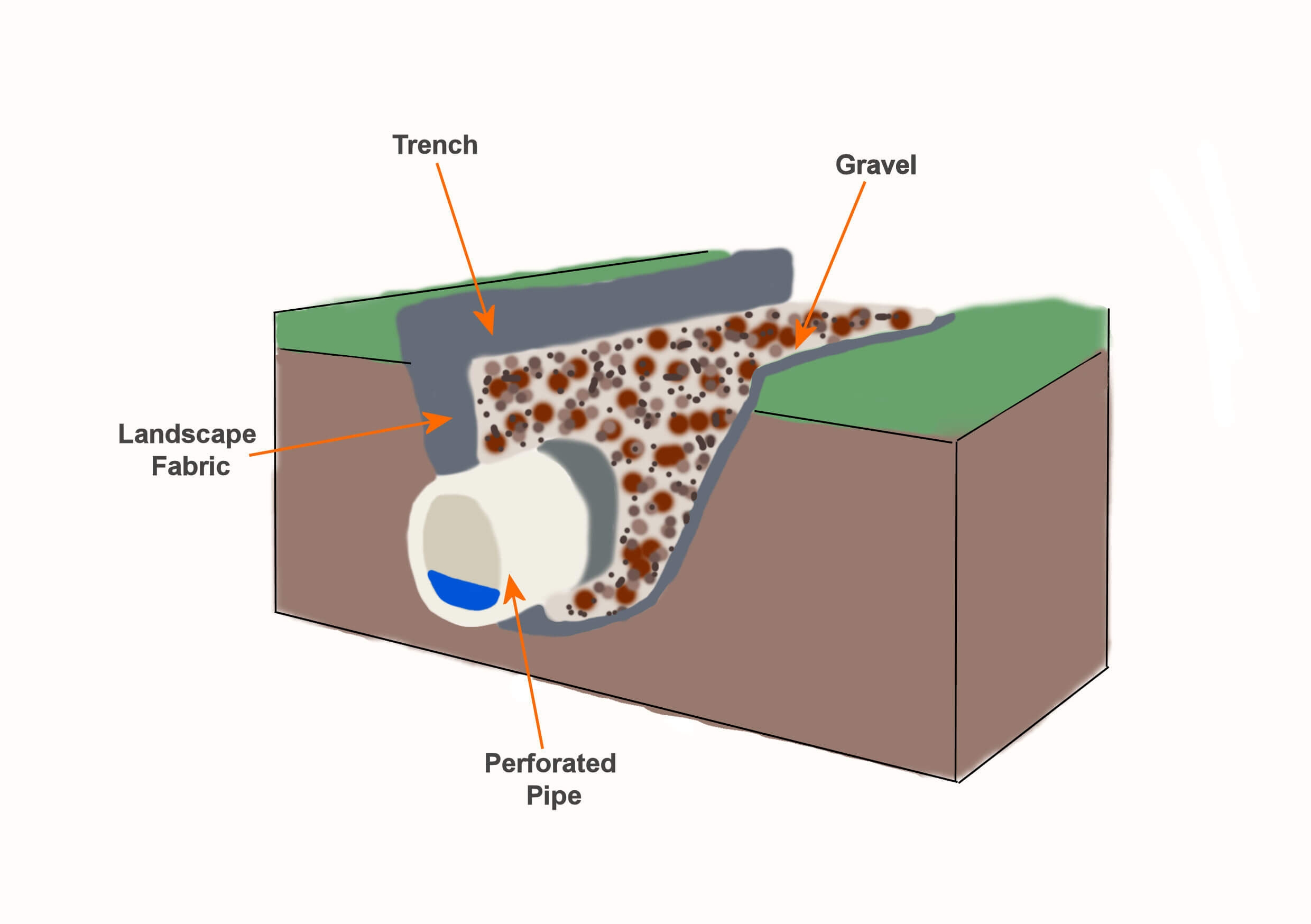

A French drain is a trench filled with gravel and perforated pipe that redirects water away from areas where it causes problems. It is one of the most effective drainage solutions for protecting foundations, reducing standing water, and improving soggy lawn conditions.

This project works well near homes, along low spots in the yard, around downspout discharge areas, and in places where water tends to collect after heavy rain.

Best Uses

Water pooling near foundations
Low spots that stay wet
Downspout runoff control
Yard drainage improvements

Project Overview

Difficulty

Moderate

Time

1–2 days for most installs

Best For

Homeowners and contractors

Main Goal

Move water away from problem areas

Base Materials

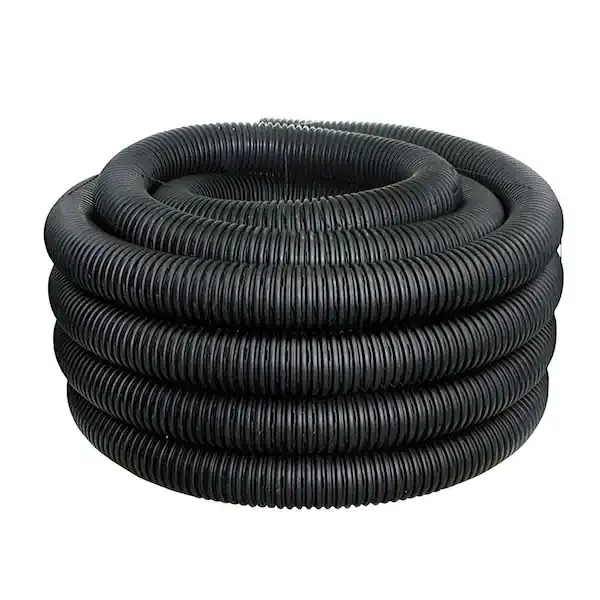

Perforated drain pipe
Drainage gravel

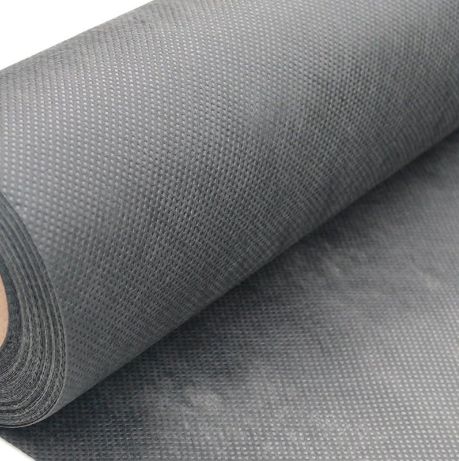

Commercial-grade landscape fabric

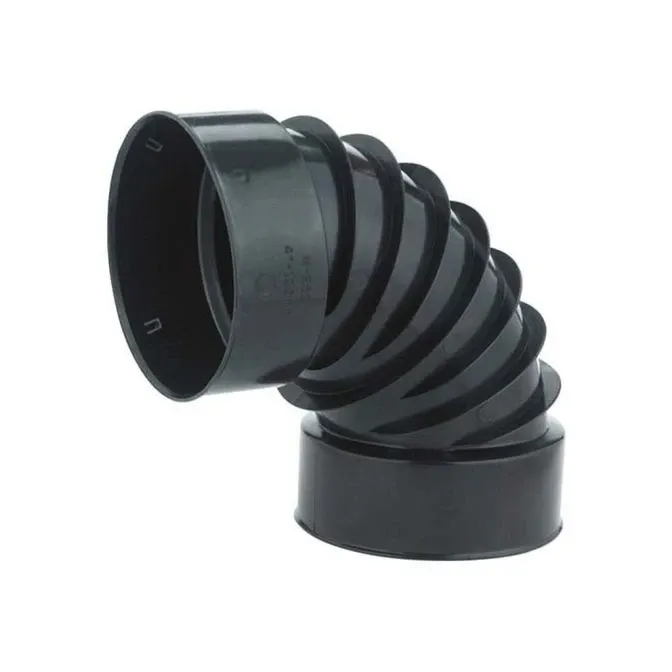

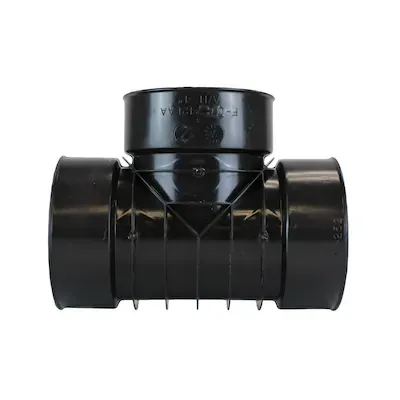

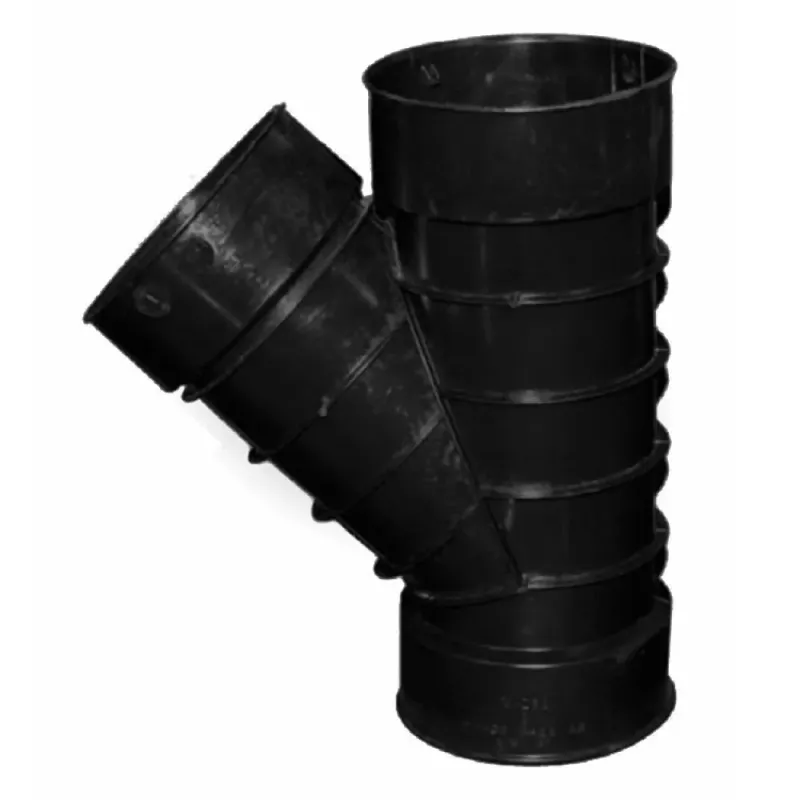

Pipe fittings and connectors

Finish Materials

Topsoil for final grading
Grass seed or sod if needed
Pop-up emitter or drainage outlet
Additional non-perforated pipe if required

Tools Recommended

• Shovel

• Spade or trenching shovel

• Wheelbarrow

• Rake

• String line or marking paint

• Tape measure

• Level

• Work gloves

Step-by-Step Installation

1. Plan the Drainage Route

Identify where water is collecting and determine the best route for the drain. The trench should slope away from your home so water moves properly through the system. A good rule is about 1 inch of fall for every 8 feet of run.

2. Gather Materials and Tools

Before digging, make sure you have all the necessary pipe, gravel, fabric, fittings, and tools ready. Having everything on site keeps the install moving and helps avoid mistakes once the trench is open.

3. Excavate the Trench

Dig a trench about 6 inches wide and roughly 18 to 24 inches deep along the planned route. Keep the bottom of the trench consistent and sloped away from the structure so water does not sit or back up.

4. Add the Gravel Base

Pour 2 to 3 inches of drainage gravel into the bottom of the trench. This base layer helps support the pipe, improves water movement, and creates a stable foundation for the drain system.

5. Lay the Perforated Pipe

Set the perforated drain pipe on top of the gravel with the holes facing down. Keep the pipe aligned with the slope of the trench so water enters efficiently and continues moving toward the outlet.

6. Cover the Pipe with Gravel

Add more gravel over the pipe until the trench is filled a few inches above it. This stone layer allows water to filter down into the pipe while keeping the system open and effective over time.

7. Install the Landscape Fabric

Lay landscape fabric over the gravel to help keep surrounding soil from working its way into the stone and clogging the drain. Fold the fabric edges neatly over the top for better coverage.

8. Backfill with Soil

Cover the landscape fabric with soil to restore the surface of the yard. You can use the excavated soil if it is suitable, or bring in clean fill as needed to create a smooth finished grade.

9. Create the Outlet

Direct the drain to a proper discharge point such as a pop-up emitter, dry well, or approved stormwater outlet. The system only works if the water has a safe place to exit.

10. Test the Drain

Run water through the system before calling the project complete. Check the flow, confirm the outlet is working properly, and make any small grade or gravel adjustments before finishing the area.
